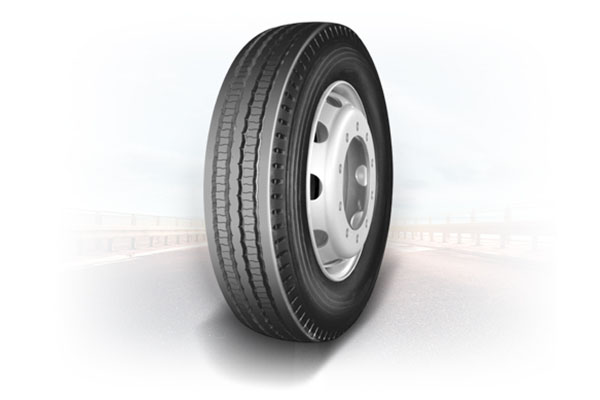

Pattern Characteristic
● The three vertical line pattern main channel so that the tire has a good stability and high speed performance.
● The small rubber block effectively improve tire main groove bottom self-cleaning.
● The pattern on the thin knife slot provides wet skid resistance good.
● Shoulder two different shapes of groove is conducive to heat dissipation.
Accepatable Tyre Position
Technical Specifications
| Tire Size | 9.00R20 | 10.00R20 | 11.00R20 | 12.00R20 | |
| Ply | 16 | 18 | 18 | 18 | |
| Load index | 144/142 | 149/146 | 152/149 | 154/151 | |
| Maximum load（kg) | Single tire | 2800 | 3250 | 3550 | 3750 |
| Double tire | 2650 | 3000 | 3250 | 3450 | |
| Corresponding
air pressure(kpa) | Single tire | 900 | 930 | 930 | 830 |
| Double tire | 900 | 930 | 930 | 830 | |
| Measurement Wheel rim | 7.0 | 7.5 | 8.0 | 8.5 | |
| Allow using wheel rim | 7.5,7.00T | 8.0,7.50V | 8.5,8.00V | 9.5,8.50V | |
| Decorative pattern Depth(mm) | 15 | 15 | 15.5 | 14.5 | |
| New
tire design size(mm) | Section width | 259 | 278 | 293 | 315 |
| Outer diameter | 1019 | 1054 | 1085 | 1125 | |
